LM2 Mill Spares

The following Spares Lists below show the spares recommended for the operation and general maintenance of the LM2 Pulverising Mill.

The following Parts Lists below show the parts recommended for the operation and general maintenance of the LM2 Pulverising Mill.

Operating/Maintenance Spares – LM2 Pulverising Mill

Showing 1 – 10 of 10 results Showing all 10 results Showing the single result No results found
Sort by Name A - Z
Filters Sort results
Reset Apply
Name
Item number
Air bag clamp
111070
Air line 6 mm
340012
Bearing
221005
Bearing housing
221019
Hour counter
605911
Mill spring spigot bush
115050
Platform Insert
470029
Pneumatic regulator
340002
Spring
350010
Vee Belts
225003

Operating/Maintenance Electrical Spares – LM2 Pulverising Mill

Showing 1 – 10 of 10 results Showing all 10 results Showing the single result No results found
Sort by Name A - Z
Filters Sort results
Reset Apply
Name
Item number
Air clamp bleed control
340001
Air pressure switch
616200
Contactor
604059
Filter regulator
340002 FR
Lid locking safety switch
652168
Overload relay
604252
Overload relay
604250
Solenoid valve 50/60 Hz
340064
Start switch actuator
605918
Stop switch actuator
605919

Operating/Maintenance Spares – Millmate

Showing 1 – 4 of 4 results Showing all 4 results Showing the single result No results found
Sort by Name A - Z
Filters Sort results
Reset Apply
Name
Item number
Air bag
111070 - AB
Air line 4 mm
340182
Air line 6 mm
340012
Pneumatic regulator
340002
LM2 Pulverising Mill

Parts of the LM2 Mill

Showing 1 – 13 of 13 results Showing all 13 results Showing the single result No results found
Sort by Name A - Z
Filters Sort results
Reset Apply
Name
Item number
Air bag clamp
111070
Base frame assembly
112056
Bearing
221005
Bearing housing
221019
Drive Motor
614007
Grease nipple
343088
Jacking bolt & nut
Mill head platform
112006
Mill spring spigot bush
115050
Motor mount plate
115013
Platform Insert
470029
Spring
350010
Universal drive shaft
225031
PARTS OF THE LM2 MASS ASSEMBLY

Parts of the LM2 Mass Assembly

Showing 1 – 10 of 10 results Showing all 10 results Showing the single result No results found
Sort by Name A - Z
Filters Sort results
Reset Apply
Name
Item number
Bearing
221004
Circlip
229005
Circlip
229010
Eccentric weight
112004
LM2 housing lower
112022
Plug (grub screw)
525307
Seal
223002
Seal
223003
Seloc pin
522802
Shaft
112018

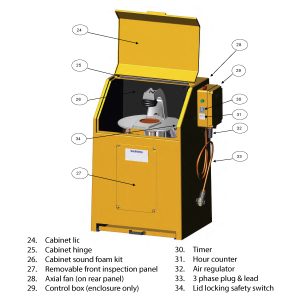

Parts of the LM2 Cabinet

Showing 1 – 11 of 11 results Showing all 11 results Showing the single result No results found
Sort by Name A - Z
Filters Sort results
Reset Apply
Name
Item number
3 phase plug & lead
607004
Axial fan (on rear panel)
613200
Cabinet hinge
112051
Cabinet lid
112030
Cabinet sound foam kit
112079
Control box (enclosure only)
611040
Hour counter
605911
Lid locking safety switch
652168
Pneumatic regulator
340002
Removable front inspection panel
343422
Timer
605813

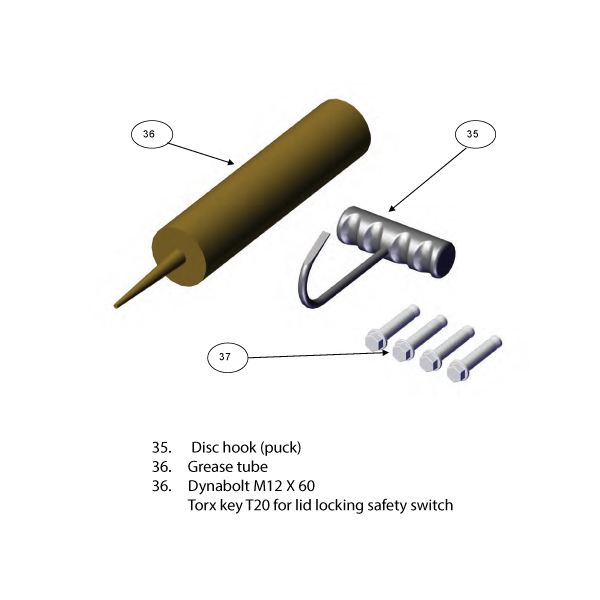

Accessory Parts

Showing 1 – 4 of 4 results Showing all 4 results Showing the single result No results found
Sort by Name A - Z
Filters Sort results
Reset Apply
Name
Item number
Disc (puck) hook
470015
Dynabolt M12 X 60
512708
Grease tube
350017
Torx key T20 for lid locking safety switch
346790

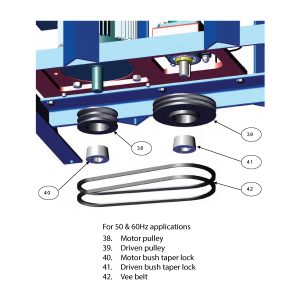

Drive Belts & Pulleys

Showing 1 – 7 of 7 results Showing all 7 results Showing the single result No results found
Sort by Name A - Z
Filters Sort results
Reset Apply
Name
Item number
Driven bush taper lock
225007
Driven pulley
225006
Motor bush taper lock
225010
Motor bush taper lock
225005
Motor pulley
225012
Vee belt for 50 Hz applications
225011
Vee Belts
225003

Electrical Parts of the LM2 Pulverising Mill

Showing 1 – 19 of 19 results Showing all 19 results Showing the single result No results found
Sort by Name A - Z
Filters Sort results
Reset Apply
Name
Item number
Air clamp bleed control
340001
Air fitting elbow
340024
Air pressure gauge
340003
Air pressure switch
616200
Contactor
604059
Control box (enclosure only)
611040
Filter regulator
340002 FR
Hour counter
605911
Overload relay
604252
Overload relay
604250
Solenoid valve 50/60 Hz
340064
Special tee fitting
340040
Start button
652244
Start switch actuator
605918
Stop button
652243
Stop switch actuator
605919
Straight connector
340027
Timer
605813
Transformer
612000

Bowls, Lids, Rings, Rollers, Grinding Elements & Seals

Showing 1 – 16 of 16 results Showing all 16 results Showing the single result No results found
Sort by Name A - Z
Filters Sort results
Reset Apply
Bowl Model
Item number
B100 – CS
B100 – SS
B1000 – CS
B1000 – SS
B125 – SS
B2000 – CS
B2000 – CS
B300 – CS
B300 – SS
B400 – CS
B400 – SS
B50 – CS
B50 – SS
B800 – CS
B800 – SS
WC125 – TC

Spacer Rings for use with Bowls

Showing 1 – 8 of 8 results Showing all 8 results Showing the single result No results found
Sort by Name A - Z
Filters Sort results
Reset Apply
Bowl Model
Spacer Rings Item No.
B100
470003
B1000
470007
B125
470005
B2000
Item No. not required
B300
470005
B400
470005
B50
470001
WC125
470066
